SA73171-SW-4-11-16"Sq 2-1-8"D Weld Boxes-Weld Boxes-presembler

Our area of expertise is Preassemblies, We can provide any custom assembly that you require.

P / N	SA73171-SW

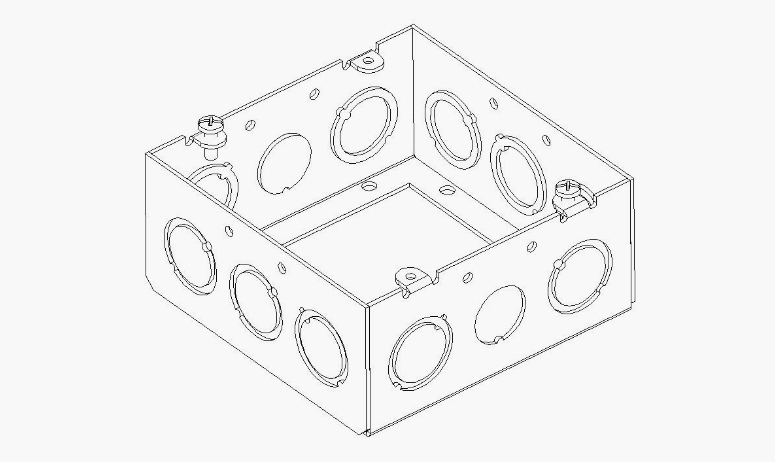

Description	4-11/16" SQUARE 2-1/8"DEEP WELD EXTENSION RING S-8-1/2" 4-CONCENTRIC 1/2-3/4" KO ZINC PLATED OR PRE-GAL G60 2 SCREWS
Length	4-11/16"
Width	4-11/16"
Depth	2-1/8"
Height	\
Volume	42.0 CU.IN
Side KO	(10) 1/2"-3/4" (2) 12"
Bottom KO	\
	E508835

Datasheet:

Inquiry
